Vibratory Disc Mill for Sample Preparation

The EQR-200 Vibratory Disc Mill is a grinding mill specially designed

to obtain analytical grain sizes in a wide variety of samples, such as glass, earth, slags, metallic oxides, ferroalloys, cements, and ceramic materials amongst others.

It can quickly grind a wide range of different materials, from semi-soft to the hardest, fragile or fibrous.

All the processes can be controlled via a full color digital screen.

Its ease of handling and the robustness of all its components

make of this mill a unit practically maintenance free.

Controlled by a microprocessor, it has got five programs – editable by the digital 3.5” full color

screen – where you can fix the different times and speeds for the milling process. You just need

to slide the jar in place, with the sample within, and once the door is closed, choose one of the

programs and push the on key. After the selected time elapses the mill will stop and at that moment

it is possible to open the door and take the jar out with the sample. To check in the remaining

milling time you can just look in the digital screen.

Safe. The fixing system of the milling jars, as well as the interlocking system of the door – preventing

it from opening until the engine is completely still, make of this mill a highly safe unit.

Silent. The special acoustic insulation lining the inside reduces the noise to a really low level,

avoiding thus the exposure of the user to noise.

Stable. The frequency converter in the mill, apart from letting you adjust the speed of the engine

to the most appropriate for each type of sample, enables the unit to reach the working speed

and then pass to zero with an acceleration or deceleration ramp, so the unit does not vibrate in

the start up and when stopping.

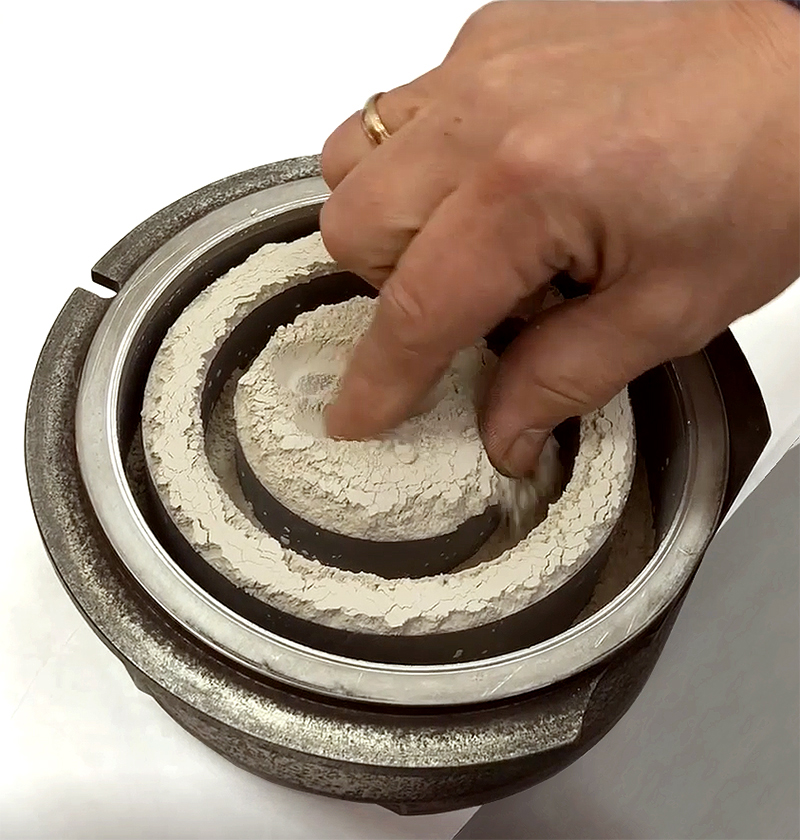

Method. The grinding of the sample is made inside the jar with the hitting of the blocks with

one another and then the friction between them and the jar. The weight of the blocks helps to

achieve really short milling times.

vibratory grinding mill, laboratory disc grinder, sample preparation mill, high-speed disc mill, industrial vibratory mill

Applications:

Glass, earth, slags, coal, clinker, coke, metallic oxides,

ferroalloys, cement, ceramic materials, minerals,

silicates, geological and mineralogical samples
